Stretch Film Slitting Machine

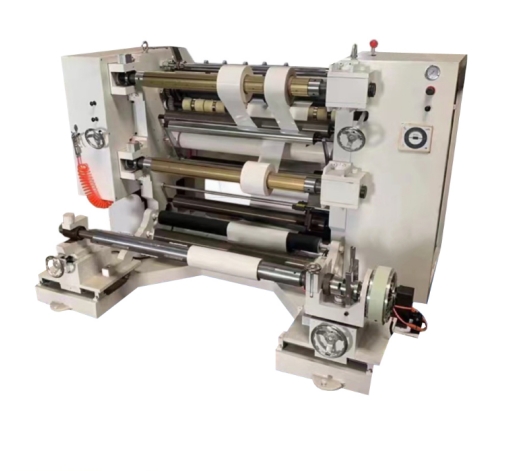

Plastic Film Slitter Rewinder Machine

Plastic Film Slitter Rewinder Machine

PPD-PFSR500

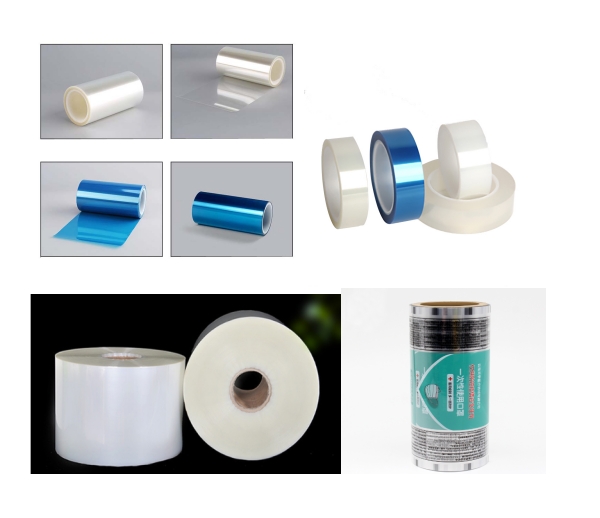

Plastic film slitter rewinder machine is suitable for longitudinal slitting of various roll-shaped materials such as PP plastic roll,paper,copper foil and composite plastic paper etc.
PP plastic roll slitter rewinder has a photoelectric tracking correction system, the tension of rewinding and unwinding is controlled by a magnetic powder clutch,and the host adopts frequency conversion speed regulation.
The slitting width can be adjusted according to requirements.The slitting is accurate,the slitting speed is fast,and the operation and maintenance are convenient.

Features:
1.It has automatic stop for meter counting and automatic speed regulation for line speed.
2.Unwinding tension is controlled by magnetic powder clutch,rewinding tension is magnetic powder clutch is adopted,and the main machine drives the magnetic powder to manually control.
3.Use air shaft rewinding,stable.
4.Multi-function model,our this model is suitable for different materials,such as pp plastic roll,nonwoven fabrics,composite,paper etc.

Main Data:

Name:Plastic Film Slitter Rewinder Machine

Model: PPD-PFSR500

Film category:BOPP/CPP, BOPP/VMPET/CPP, PVDC, PET/VMPET/CP, paper-plastic compound etc plastic composite film.

Film Thickness:20-150um

Unwinding width:max. 500mm,min. 50mm

Unwinding diameter:max. φ650mm

Parent Roll Installation:Pneumatic Inflated roller,3″

Machine Speed:max. 300m/min

Rewinding Speed:max.250m/min

Rewinding Width:max.500mm,min.50mm

Rewinding Diameter:max.φ650mm

Power supply:380V,3PH,50Hz
