Cling Wrap Rewinder Machine

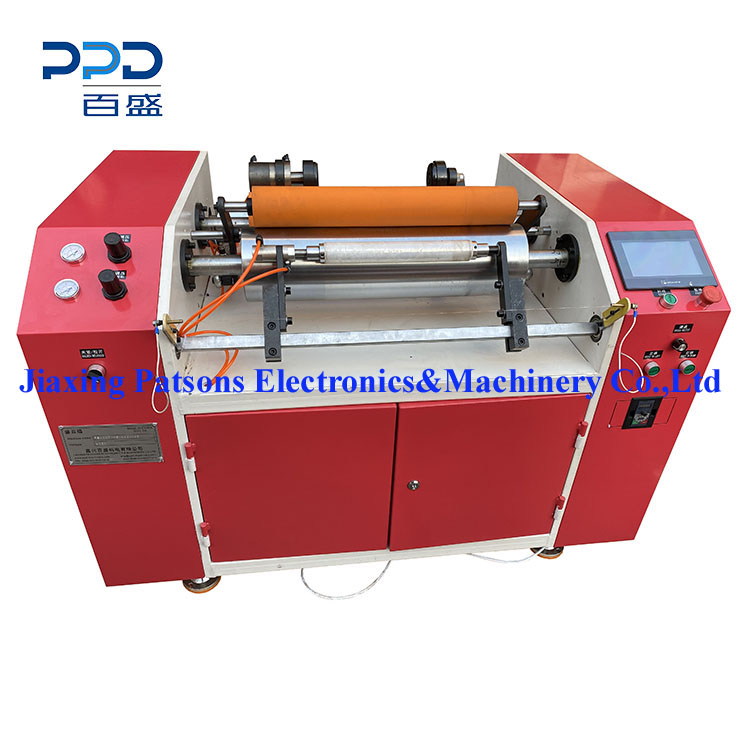

Semi Automatic PE/PVC Cling Film Rewinding Machine

Semi Automatic PE/PVC Cling Film Rewinding Machine

PPD-SCRW500

Semi automatic PE/PVC cling film rewinding machine is mainly for rewinding big mother roll into small products with automatic meter counter.
This model can add fluffy roll function if buyer need.

Features:
1.Machine is in simple structure,operate and control easily for every workers.
2.Touch screen and PLC control,length setting on touch screen directly.
3.Pneumatic structure,change paper core and remove the rewind roll more convience.

Main Data:

Name:Semi Automatic PE/PVC Cling Film Rewinding Machine

Model:PPD-SCRW500

Mother roll width:500mm

Mother roll inner diameter:76mm

Mother roll outer diameter:max400mm

Rewind roll width:max500mm

Rewind roll inner diameter:38/50/76mm option

Rewind roll outer diameter:180mm

Speed:max300m/min

Voltage:220/380/415V,50Hz option

Packing size:1500x1050x1250mm

Weight:550kgs

14514 (101).jpg14514 (105).jpg
