Automatic Stretch Film Rewinding Machine

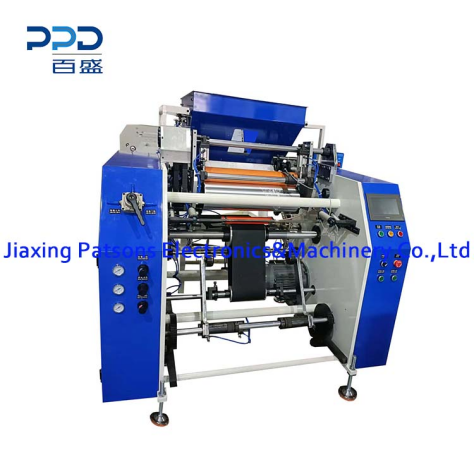

High Speed Fully Auto 4 Shaft Stretch Film Rewinder

High Speed Fully Auto 4 Shaft Stretch Film Rewinder

PPD-4ASH500

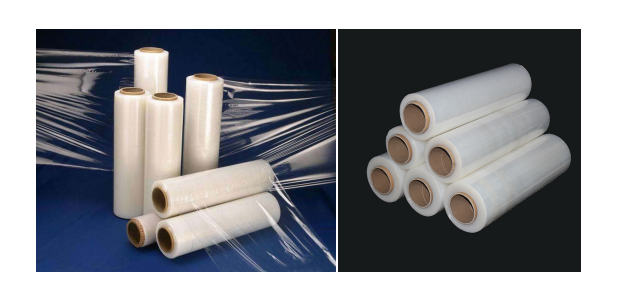

High speed fully auto 4 shaft stretch film rewinder is ideal for rewinding of stretch film cling film and any other plastic film rewinding machine.
This model is rapidly change the shaft,4 shaft changing for non-stop production,it improves the production more than 50% than the market conventional model.
Machine works with PLC and man-machine interface control system,through turn organization system of high precision parts and clamping device, clamp accurately of the paper core, put the it to the rewinding station and pressure onto the rewinding roller to make the machine more automatically and user friendly.


Features:
1.It can get paper core down, replace the paper core, cut off the film and delivery to receiving table automatically.
2.Higher production efficiency and lower labor cost.

Main Data:

Name:High Speed Fully Auto 4 Shaft Stretch Film Rewinder

Model:PPD-4ASH500

Mother roll width:500mm

Mother roll outer diameter:max500mm

Mother roll inner diameter:3inch

Rewinding roll width:500mm

Rewinding roll inner diameter:1.5/2/3inch

Rewinding roll outer diameter: max150mm

Machine  design speed:max1200m/min

Total power:5.0kw

Voltage:220/380/415/450V,50Hz
