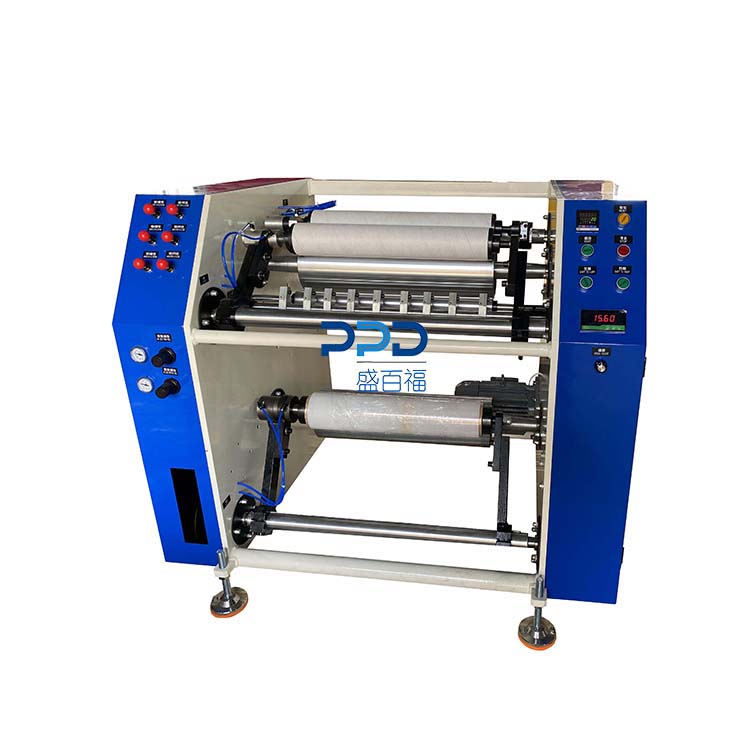

Semi-automatic stretch film rewinder(1800m) is designed to rewind stretch film from jumbo roll to hand/machine rolls and mini-rolls. The rewinder is equipped by slitting unit to make specified quantity of mini-rolls with minimal roll width 50mm.
Machine is equipped by inverter and variable-speed pulley, which makes capable to adjust speed and tension of rewinding. This function is helpful to rewind wide range of materials: PE stretch film, PVC stretch film ,PE/PVC cling film etc.
Features:
1.Max width with 500mm,same as jumbo roll.
2.With slitting and rewinding both function.
3.High designed speed: 650 meters per minute.
4.Slitting and rewinder sub roll width from 50 to 500mm
5.Paper core diameter as 1.5 inch,2 inch,3 inch
6.Max size of rewind roll:1800mm(Length),230mm(OD)
7.It is easy and fast knife installation for slitting option once change to slit mode.
Main Data:
Name:Semi Auto Stretch Film Rewinder (1800m)
Model:PPD-SFR500
Jumbo roll width:max500mm
Jumbo roll ID:76mm
Jumbo roll OD:max400mm
Rewind roll width:max500mm
Rewind roll ID:1.5/2/3inch
Rewind roll length:0-1800m option
Rewind roll OD:max230mm
Voltage:220/380/415V,50Hz
Power:1.7kw
