Autotic tubeless silicon paper rewinder with auto label sticker is our latest design for food paper rewinding machine.

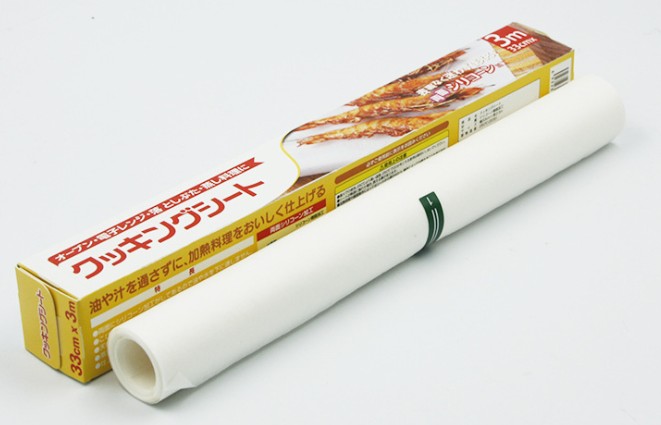

Machine is suit for rewinding of silicon paper,baking paper,wax paper,parchment paper,bakery paper,cooking paper and also for book cover etc,the final product is coreless and with label sticker.
Features:
1.Multi-shaft working,high product output.
2.Touch screen to set data, machine is easy to operate.
3.Automatic rewinding,automatic cutting off and change to next shaft ,automatic labelling.
4.Automatic delivery the final product by the conveyor belt.
5.Machine body use food grade 304 stainless steel,more tidy and safty for food use.
Technical Data:
Name: Automatic Tubeless Silicon Paper Rewinder With Auto Label Sticker
Model:PPD-CSPRL450
Unwinding roll width:450mm
Unwinding paper tube: 3inch
Unwinding air shaft tension: 10KN auto tension
Unwinding diameter: max800mm
Rewinding roll width:max450mm
Rewinding inner diameter: 25mm
Rewinding speed: max180m/min
Main motor power: 2.2kw
Frequency conversion power: 2.2kw
Voltage:220/380/415V ,50hz
Machine size: 2500*2250*1450mm
Weight: 1500kg
