High speed pallet stretch film rewinder adopts PLC man-machine interface communication program,touch screen,inverter control motor user friendly operation,less skilled operator can run the machine.
It is automatic paper core loading,automatic rewinding,automatic paper core exchange,automatic cut off of rewind roll when reach the setting length.

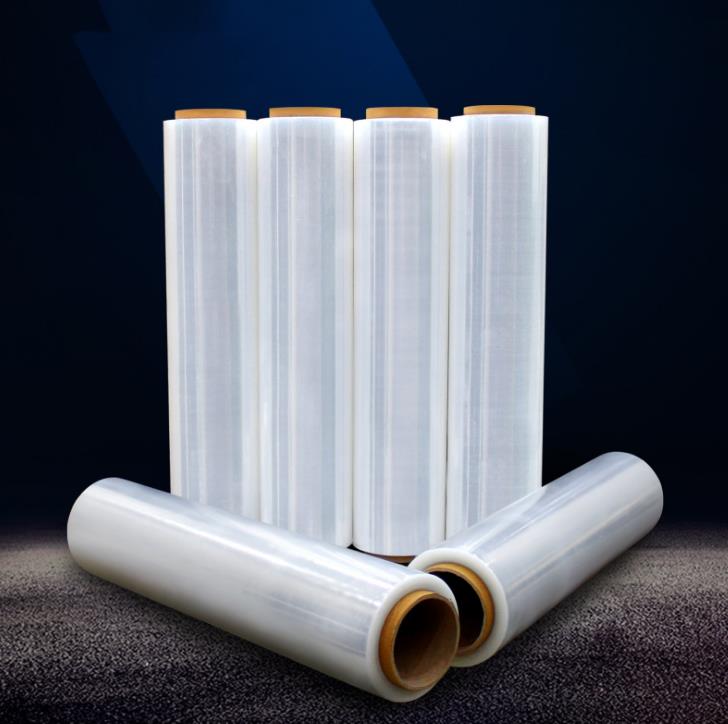

It is mainly for rewinding of PE stretch wrap roll,pallet stretch film,industrial stretch film,plastic wrapping film,food cling film,LLDPE film,LDPE film etc.
Main Technical Parameter:
Width of parent roll:600mm
Core specification of parent roll:76mm
Diameter of parent roll:max400mm
Width of sub roll:max600mm
Core specification of sub roll:38/50/76mm option
Diameter of sub roll:max160mm
Machine speed:max1500m/min
Voltage:380V
Machine power:4kw
Conveyor belt power:0.37kw
Total power:4.37kw
NOTE:Different sizes can be customzized.
