Honeycomb Paper Forming Machine

Honeycomb Paper Forming Machine

PPD-HPM500

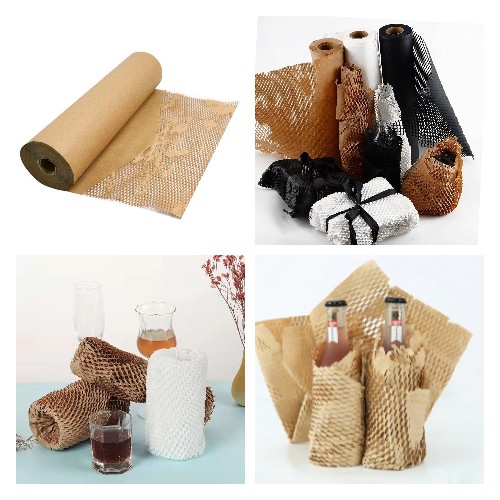

Honeycomb paper forming machine is suitable for rewinding all kinds of honeycomb mesh paper. The machine is a special machine for making honeycomb paper. It can cut the kraft paper into horizontal broken lines by rolling cutting, and roll them into coils by surface rewinding. The rolled product can be used for the buffer packaging of express delivery, or the middle buffer layer of the buffer packaging bag of express delivery.

Features:
1.Machine adopts frequency conversion speed regulation, fully integrated circuit control.
2.Machine has high production efficiency, fast speed, stable product quality, and automatic meter counting
3.It is completed from unwinding to rewinding at one time.
4.Rewinding and unwinding tension is automatically controlled.

Main Data:

Name:Honeycomb Paper Forming Machine

Model:PPD-HPM500

Unwinding roll width:max500mm

Unwinding diameter:max1000mm

Unwinding shaft:3 inch

Rewinding shaft:1.5inch/2inch

Speed:80-120m/min

Voltage:380V,50hz,3ph

Power:4kw
