Stretch Film Slitting Machine

PVC Wire Protective Film Stretch Film Cling Film Rewinder Slitter

PVC Wire Protective Film Stretch Film Cling Film Rewinder Slitter

PPD-WPFS500

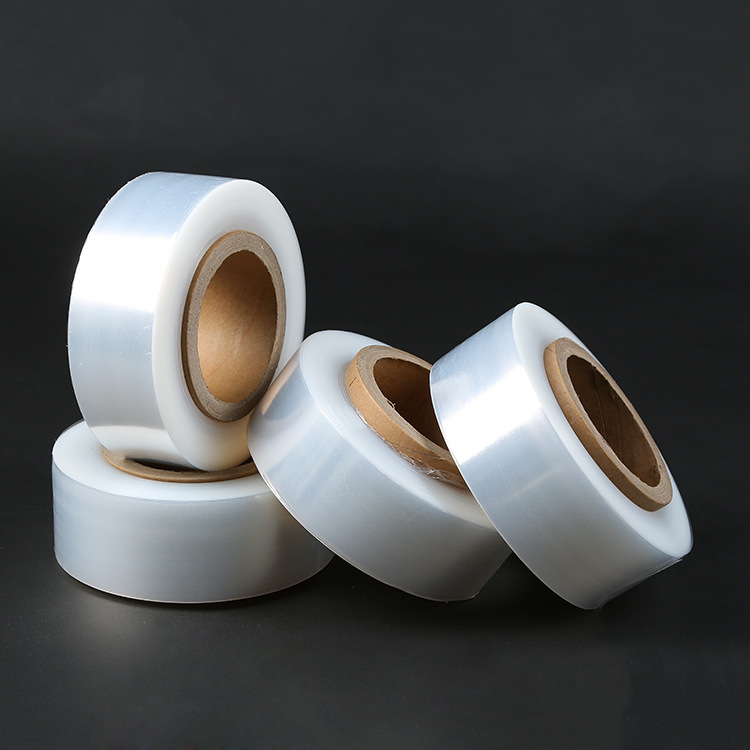

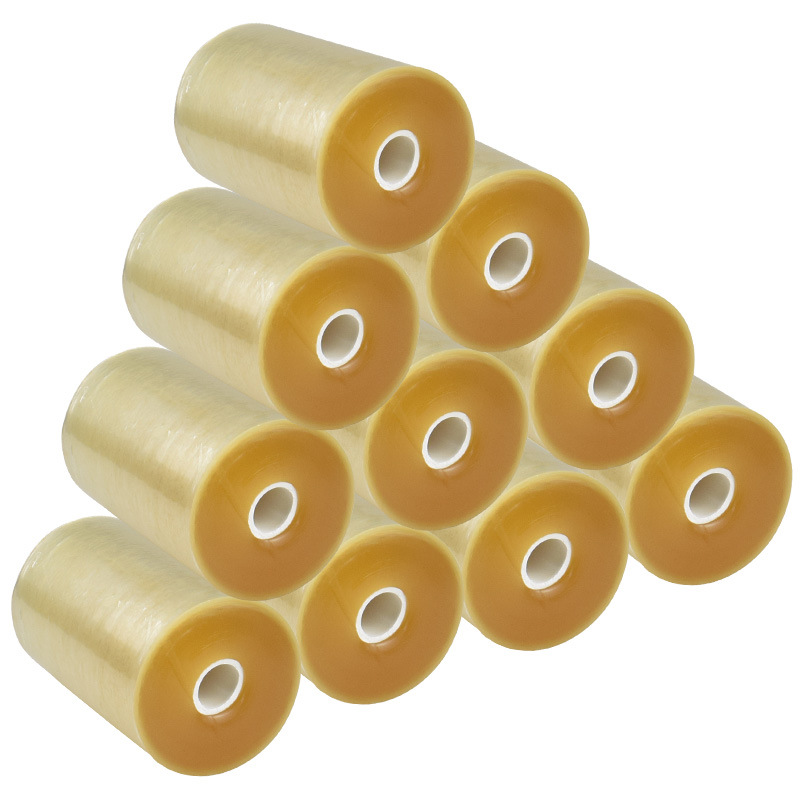

PVC wire protective film stretch film cling film rewinder slitter is mainly used for slitting and rewinding PVC/PE wire protective film, stretch film, stretch film, cast film, vegetable tying film and other plastic films.


Features:
1. Operation mode: simple operation control panel, control of each part of the machine, centralized panel operation.
2. Length calculation: use meter counter to measure speed and length.
3. Operation control: frequency conversion speed regulation.
4. Rewinding method: 3 inches adopts air expansion shaft to rewind, 1.5 and 2 inches adopts ordinary mandrel to rewind.

Technical Data:

Name: PVC Wire Protective Film Stretch Film Cling Film Rewinder Slitter

Model: PPD-WPFS500

Parent roll width: 500mm

Outer diameter of parent roll: max450mm

Slitting width: 30-500mm

Outer diameter of rewinding: max180mm

Applicable paper tube inner diameter: 38/50/76mm

Speed: 600m/min

Power: 1.7kw

Voltage: 220/380/415/450v

Air supply: 0.2Mpa

11383408360_1709561269.jpg18952679598_84861690.jpgO1CN01bVCFxg1moVRTWa9YL_!!2212831275001-0-cib.jpg
