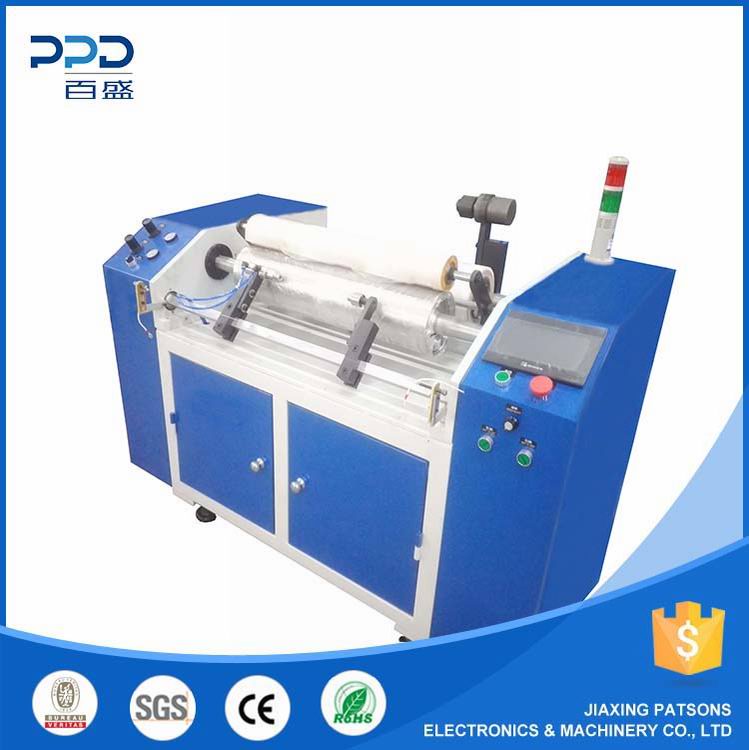

Semi auto cling film winding machine PPD-CFR500 is a newly designed for very compact size,high speed for low investment of cling film converting industry.
This model is very small,and short,the female operator can sit down for working,it is automatic loading and start,automatic stop when reach length set,auto unload the finished roll,the cut off of the finished roll is also included the machine function,operator only need to leg press for the button to cut off.
Machine can cater both PE cling film,and PVC food stretch wrap for casting film and blowing film.
The new model is upgrade for PLC control,the operation is by touch screen page,it is really a cost effective model.
Main data:
Raw material:cling film
Parent roll width:200-500mm
Parent roll ID:3inch
Parent roll OD:500mm
Rewinding roll width:200-500mm
Rewinding roll ID:30/35/38mm etc
Rewinding roll length:3-600meters
Speed:300m/min max
Power:1.5kw
Volt:220/240/380/415/440v
